’ McCormick X60 Series ’ four models from 92hp to 121hp with boost
’ New transmission ’ more speeds, smooth adjustable power shuttle
’ Increased 3pt linkage lift capacity, more remote spool valves available
’ Four-post cab with fresh interior design provides space and comfort

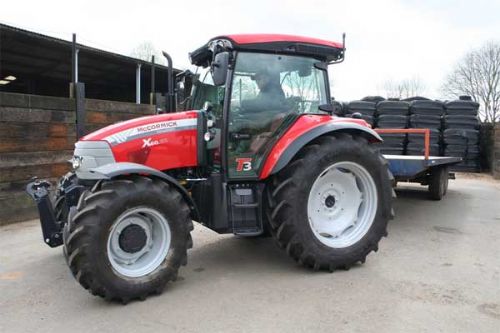

Apart from the new ’X60’ identification on the bonnet, round headlamps and a new bright finish for the cab-mounted work lights, the latest addition to the McCormick range gives few clues to the extensive changes made beneath the bodywork.
Yet with more engine power, increased linkage lift capacity and a new transmission, the X60 Series brings new levels of performance and features to the McCormick mid-range.
’The popular CX Series tractors have been our best-sellers for some time and have benefited in recent years from a number of improvements to the transmission, brakes and cab ’ but the time has come for a wholesale upgrade,’ says Paul Wade, McCormick product specialist. ’With the X60 Series, our mainstream four-cylinder tractor gets an even better specification and moves up the power scale in line with current trends.’
Four Perkins-powered models replace the three-model CX line with engine outputs spanning a wider power range.
The 92hp X60.20 comes first followed by the 101hp X60.30, which matches the most powerful model in the CX range, then the line-up moves on to the X60.40 with 110hp output. At the top of the range, the McCormick X60.50 has a modest step-up in power for draft work at 112hp ’ but it has a more significant 11hp advantage for pto-driven implements and road transport with 121hp output.
’This is the first McCormick four-cylinder tractor to feature a 16-valve cylinder head and common rail fuel injection with electronic management and two power outputs,’ notes Paul Wade. ’These features make efficient use of diesel ’ first, through precision metering; second, by increasing productivity; and third, by reducing engine revs to just 1830rpm once a 40kph cruise has been reached.’
On all four versions of the X60, greater fuel capacity from the 180-litre tank allows longer working hours between refills.
Power and torque is channelled through a new power shuttle transmission. It has the three powershift steps as on the superseded design but 12 more forward speeds for added versatility.
In total, there are 36 speeds forward ’ or 48 when the optional creep ’box is added ’ and 12 or 16 speeds in reverse.
’With more ratios available, the operator has a better chance achieving the best combination of engine and ground speeds for the work being done,’ notes Paul Wade. ’Outputs can be improved and the job completed more efficiently ’ whether it’s ploughing a field or hauling a diet feeder.’
The powershift steps are still selected by the familiar thumb switch on the range lever, where there is also a button that saves using the clutch pedal for shifting from one range to the next. The operator can also use a new modulation control to fine-tune the responsiveness of the clutch and power shuttle to suit different circumstances and personal preference.
Using a heavier-duty front drive axle built by ARGO Tractors introduces a locking differential and an integral all-wheel braking system for the first time. In addition to the larger number of oil-immersed discs installed in the rear axle, this significantly improves the braking potential of the tractor, while the standard booster on all models eases the pressure required at the pedal.
’The X60’s ability to handle larger, heavier equipment is matched by higher performance brakes,’ Paul Wade emphasises. ’With the integral braking system, the newcomer has true four-wheel brakes to help bring heavy outfits safely to a halt.’
An increase in three-point linkage lift capacity to 5000kg and the use of lower link rather than top link draft sensing also helps the X60 handle bigger implements better than its predecessor. Also, operators can fit a greater number of remote valve couplings ’ up to five instead of three ’ to cater for greater use of hydraulic adjustments and features on modern implements.
A further advance is the option of three-speed power take-off, which adds a ’750’ speed between the regular 540 and 1000rpm settings. This can be used to obtain 540rpm at the shaft using a lower, more economical engine speed.
The X60 tractor’s Deluxe cab is the only major assembly carried over from the CX: ’The four-post cab was a new design for the CX that provided a fresh interior giving operators an improved control layout ’ there was no need to change it for the X60,’ notes Paul Wade. ’The modern design, with full-size doors both sides, gives great all-round visibility ’ including upwards through the roof window to a raised loader.’
Prices for the new McCormick series start at ’40,282 for the 92hp X60.20 rising to ’46,555 for the 112/121hp X60.50 version.
